Bal House

Menlo Park, États-Unis

Terry & Terry Architecture

Berkeley, États-Unis, 26-10-2015 -

This project consists of a single-story addition and renovation to an existing mid-century ranch house in Menlo Park, California.


Conceived for a retired couple, the open and accessible design integrates the living space with the rear garden to create a well-lit domestic extension. Comprised of two floating volumes, the addition formally designates the bedroom to the west and the main (common) space to the east. The two wings gradually diverge from the original structure to generate a glass-clad fissure in between. This void space pulls the garden inwards, injecting elements of the outdoors into the core of the house.


The bedroom wing/volume, which is located on the west side of the house encompasses the existing bedroom volume which was extended toward the rear in the form of a wood tube to accommodate an additional bedroom. This bedroom volume opens out to the garden.


The second volume, which comprises the main space, houses the kitchen, dining and media areas. The east wood wall plane of the main space folds onto two concrete walls to form the main roof plane. The main space produces large transparent openings or voids that open out onto a deck at the rear garden. The main roof plane extends forward to form the carport roof near the front of the property. A garden concrete wall stretches out from the media room toward the garden adjacent to a rear ramp and forms part of the cantilevered bench that echoes the concrete wall material in the main space.


The original structure, which houses the music room, two bedrooms and a bathroom, was retained and renovated. A new steel bay window seat was inserted at the front bedroom to replace a small existing window. The front entry porch was extended and rebuilt with hardwood decking connecting to the new driveway. The fireplace chimney was reconstructed and, along with the carport storage volume, was skinned with recycled epdm rubber. A new hallway/ passage and wood skinned storage wall were designed into the core of the structure to engage and connect the materiality of the new addition with the existing structure.


This project has won numerous honor and merit awards from several AIA chapters, one just recently from the AIA San Francisco chapter as well as other design awards from SPARK and Residential Architect Design Awards (RADA).


About Terry & Terry Architecture

Terry & Terry Architecture prides itself on its ability to combine innovative architectural theory and practice. The partners, Alexander and Ivan Terry, each have over twenty years of experience, offering both design concepts and professional production services in architecture. Terry & Terry Architecture aspires to improve the quality of life through design excellence-- thus exploring design challenges at all levels, from furniture design to urban design with a focus on innovation in response to changing conditions.


Project Data

Project:  Bal House

Location:  Menlo Park, California

Architects:  Terry & Terry Architecture

Project Team: Alex Terry, Ivan Terry, Matt Bisset

Project Engineer: Santos Urrutia Structural Engineers Inc. San Francisco

Completion Date: July 2011

Contractor:  Timberline Construction

Photographer: Bruce Damonte

Project Area: 2000 sq. Ft.


General Specifications



Structural system:

Cast in place Concrete, Wood/steel frame



Exterior cladding

Concrete: Bode Concrete, San Francisco

Wood: Ipe wood Cladding



Roofing

Built-up roofing: Dibiten Roofing



Windows

Aluminum:  Fleetwood USA Window and Doors sales@fleetwoodusa.com

Bay Window:  Custom Fabrication TTA



Glazing

Glass: Tempered Frameless Glass Panels

Skylights: Custom



Doors

Wood doors: Custom Manufactured Interior doors

Sliding doors: Fleetwood USA Window and Doors sales@fleetwoodusa.com

Hardware

Locksets: Omnia

Pulls: Hafele http://www.hafele.com/us/

Cabinet hardware: Hafele



Interior finishes:

Cabinetwork and custom woodwork: Custom Cabinets

Paints and stains: Benjamin Moore, Penofin Verde

Paneling: Ipe wood strip



Plumbing:

Grohe Faucets, Toto toilets



Lighting:

Interior ambient lighting: Tobias Grau

Downlights: Contrast Recessed Lighting

Exterior: Lumiere Lighting





- 30 -

Pour plus d’informations

  1. www.terryandterryarchitecture.com

Contact média

Pièces jointes

Images basse résolution ~ 3,5 Mo
Images tif haute résolution ~ 39 Mo

Termes et conditions

Pour diffusion immédiate

La mention des crédits photo est obligatoire. Merci d’inclure la source v2com lorsque possible et il est toujours apprécié de recevoir les versions PDF de vos articles.

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - common space - Crédit photo : Bruce Damonte
common space
Crédit photo : Bruce Damonte
Télécharger

Image moyenne résolution : 10.65 x 8.0 @ 300dpi ~ 4,2 Mo

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - garden deck area - Crédit photo : Bruce Damonte

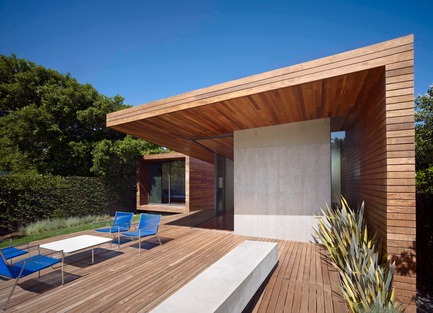

garden deck area
Crédit photo : Bruce Damonte
Télécharger

Image haute résolution : 14.0 x 10.12 @ 300dpi ~ 980 ko

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - carport - Crédit photo : Bruce Damonte

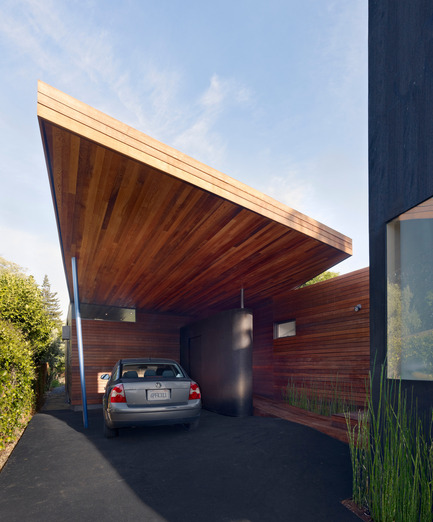

carport
Crédit photo : Bruce Damonte
Télécharger

Image haute résolution : 9.95 x 12.0 @ 300dpi ~ 2 Mo

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - bedroom wing and central garden deck  - Crédit photo :  Bruce Damonte

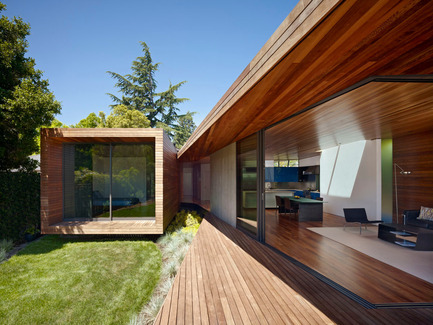

bedroom wing and central garden deck
Crédit photo : Bruce Damonte
Télécharger

Image basse résolution : 4.0 x 3.0 @ 300dpi ~ 290 ko

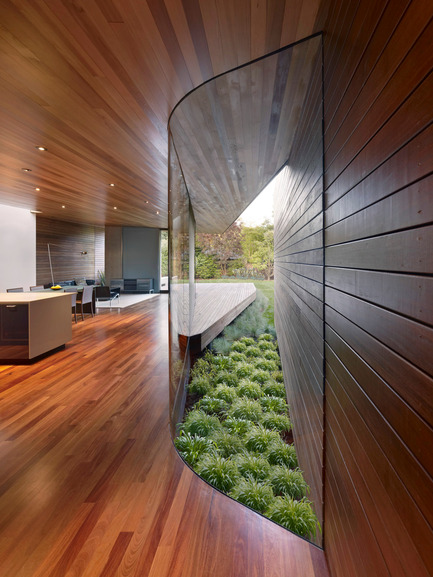

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - Transparent Hallway - Crédit photo : Bruce Damonte
Transparent Hallway
Crédit photo : Bruce Damonte
Télécharger

Image moyenne résolution : 8.0 x 10.67 @ 300dpi ~ 1,3 Mo

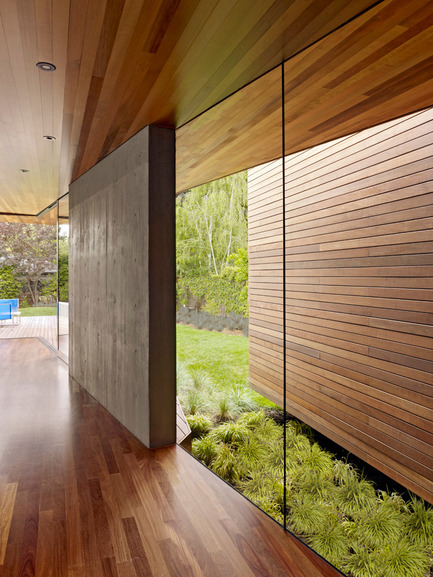

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - central garden area - Crédit photo : Bruce Damonte

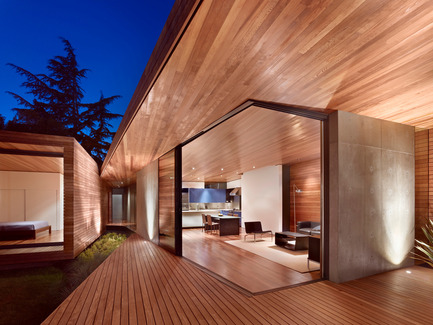

central garden area
Crédit photo : Bruce Damonte
Télécharger

Image haute résolution : 11.0 x 8.0 @ 300dpi ~ 4,6 Mo

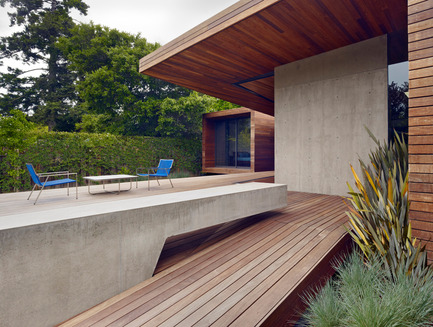

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - detail of concrete bench at deck - Crédit photo : Bruce Damonte
detail of concrete bench at deck
Crédit photo : Bruce Damonte
Télécharger

Image haute résolution : 13.33 x 10.06 @ 300dpi ~ 2,2 Mo

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - house connecting to rear deck and garden area - Crédit photo : Bruce Damonte

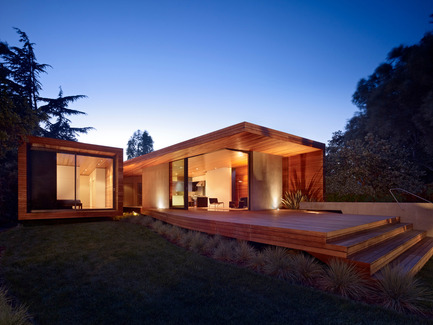

house connecting to rear deck and garden area
Crédit photo : Bruce Damonte
Télécharger

Image moyenne résolution : 10.67 x 8.0 @ 300dpi ~ 3,7 Mo

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - kitchen - Crédit photo : Bruce Damonte

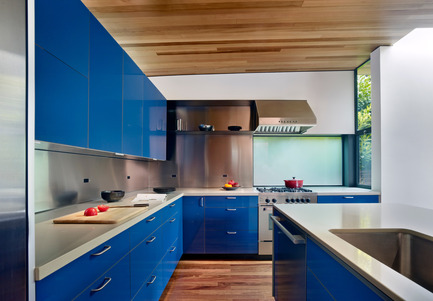

kitchen
Crédit photo : Bruce Damonte
Télécharger

Image haute résolution : 11.5 x 8.0 @ 300dpi ~ 3,2 Mo

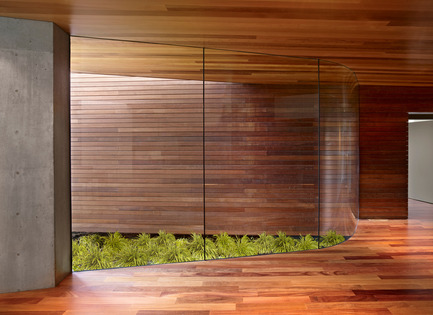

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - detail of concrete wall at central garden area - Crédit photo : Bruce Damonte
detail of concrete wall at central garden area
Crédit photo : Bruce Damonte
Télécharger

Image basse résolution : 2.5 x 3.33 @ 300dpi ~ 680 ko

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - detail of kitchen island - Crédit photo : Bruce Damonte
detail of kitchen island
Crédit photo : Bruce Damonte
Télécharger

Image haute résolution : 12.0 x 9.0 @ 300dpi ~ 920 ko

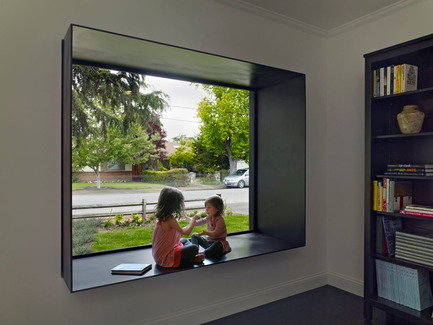

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - front room window seat - Crédit photo : Bruce Damonte
front room window seat
Crédit photo : Bruce Damonte
Télécharger

Image basse résolution : 4.0 x 3.0 @ 300dpi ~ 190 ko

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - floor plan - Crédit photo : terry and terry architecture

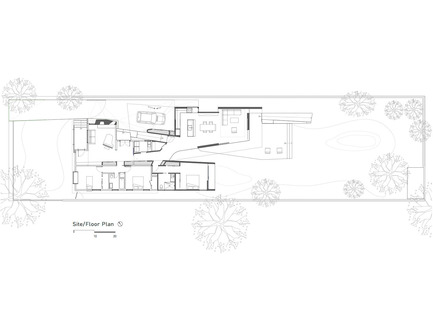

floor plan
Crédit photo : terry and terry architecture
Télécharger

Image moyenne résolution : 5.5 x 4.25 @ 300dpi ~ 350 ko

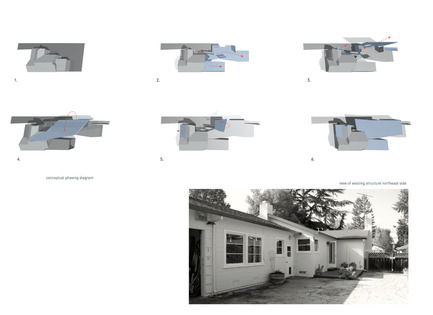

Dossier de presse | 1891-01 - Communiqué de presse | Bal House - Terry & Terry Architecture - Architecture résidentielle - above: phasing diagram, below: before image  - Crédit photo : terry and terry architecture
