RO54
Arshia Architects

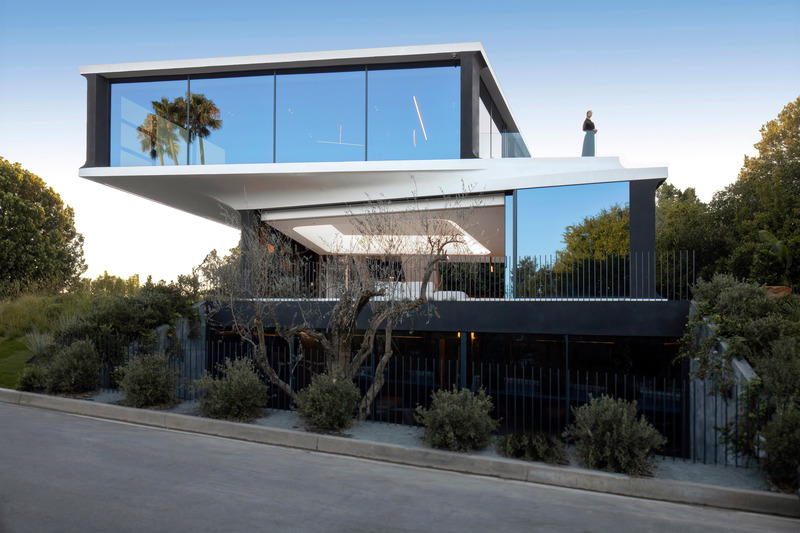

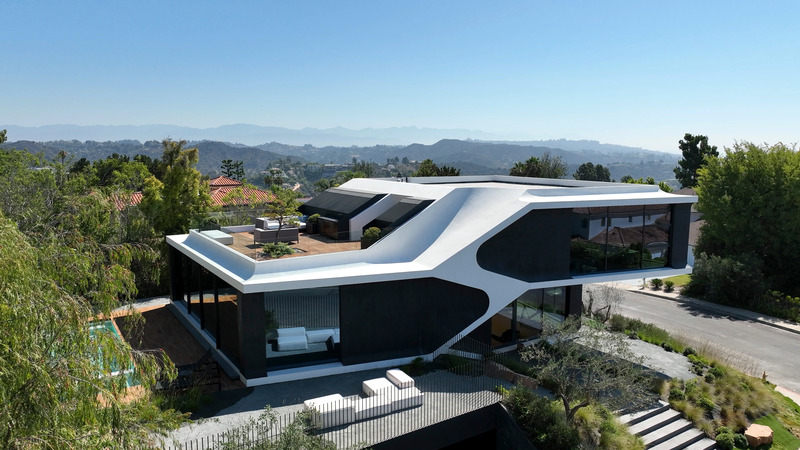

Arshia Architects proudly introduces RO54, perched on a hilltop in the Bel Air neighborhood of Los Angeles, overlooking the Pacific Ocean and the Los Angeles basin. The project gently lands a dynamic building on top of a buried podium that replicates the natural topography that existed prior to the area being subdivided for development. This hollow post-war neighborhood has been transforming gradually, overtaken by recent developments that rely on size, rather than spatial quality. The concept set out to reduce the massing of a rather large project in order for it to lodge within the neighborhood proportionally. It proposes an alternative model within the confines of stringent regulations.

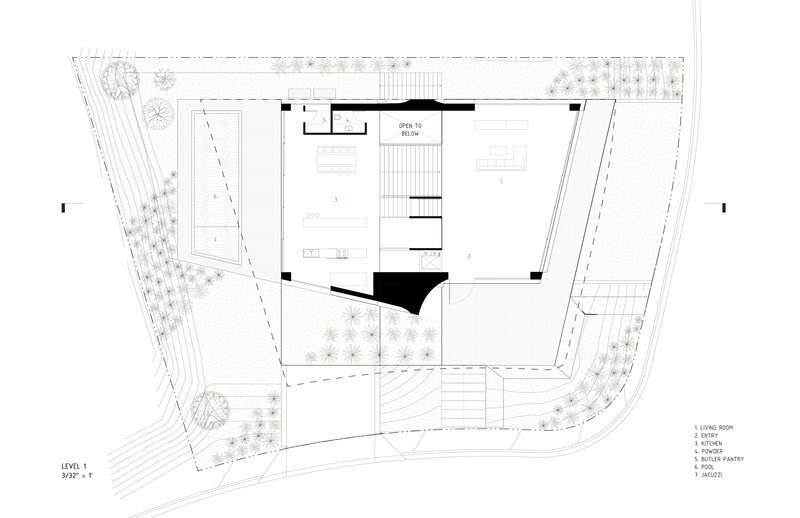

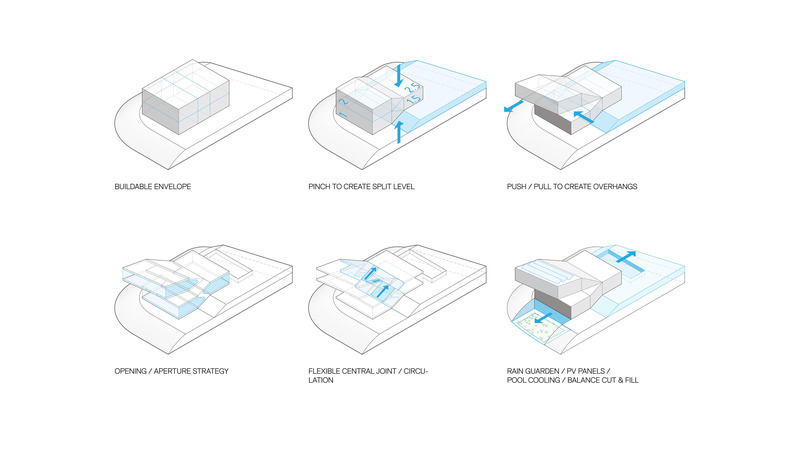

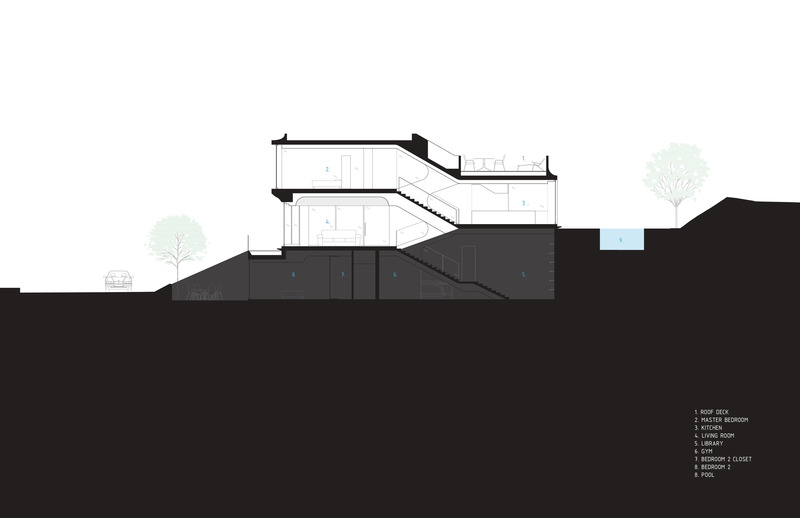

This project engages an exercise in spatial relationships to accelerate the programs of the house. It utilizes the split-level design to follow the topography of the hill and to connect the floor half-story plates. The plates form adjacencies, both visual and functional, thus allowing twice the utility of an otherwise compartmentalized organization.
The project’s aesthetic was directed by streamlined automotive design which, among others, proposed concealed performance for every technology in the house. The interior palette was based on a utilitarian approach to materials, in contrast to the overall ambient approach of the design where space overcame necessity. This balance of power proceeded in the backdrop of environmental sensitivity and clinical dearth.

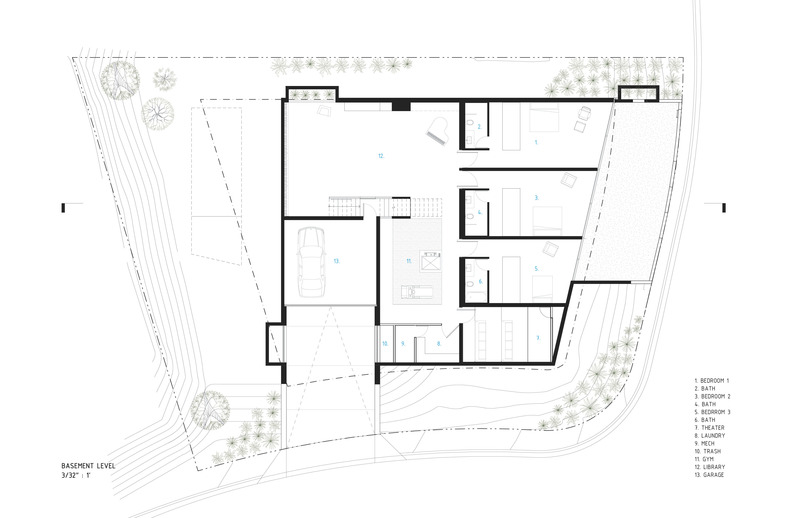

A courtyard, created by daylighting the lower bedrooms from the buried podium, also acts as the rainwater runoff filtration system for the entire site. The project meets or exceeds stringent California green building and energy conservation standards such as low-flow plumbing systems, drought tolerant planting, rainwater filtration, photovoltaic integration, high efficiency building envelope and glazing, HERS rating of the mechanical system, and more.
Indoor materials specified were sourced naturally and are compliant with Low VOC standards. The design palette was kept minimal to an all natural selection including mica plaster, hardwood flooring, and natural stone. The project sought out minimal, low-impact, and proven materials, achieving a balance between durability, ease of maintenance, and responsible design.
Thus far, the project has won 18 international design awards including:
- A Design Award 2023
- ACDA - Architecture, Construction & Design Awards-2022
- AMP - Architecture Masterprize-2022
- Architect of the Year Awards-2022
- Best Of Year_ Interior Design Magazine-2022
- Built Design Awards-2022
- Credaward-2023
- Global Future Design Awards-2022
- IDA - I Design Awards-2022-Ro54
- LABC - Los Angeles Architectural Awards-2022
- LIT - Lighting Design Awards-2022
- LIV Hospitality Design Awards
- London International Creative Competition-2022
- LOOP Design Awards-2022
- Outstanding Property Award London-2022
- SIT-Interior Design of The Year-Professional
- Titan Property Awards-2022
- UDAD-Urban Design & Architecture Design Awards-2022
Technical and Data Sheet
- Project Developer: Mike Parsee
- Architect: Arshia Architects
Architect Team:
Arshia Mahmoodi (Design Principal)
Xinlei Li (Project Manager, Project Designer)
Yuheng Huang (Project Designer)
Fang Cui (Project Designer)
Ruby Wu (Project Designer)
Zhishan Liu (Project Designer) - General Contractor: Domaen Build Inc
- Structural Engineer: BOLD Engineer & Associates Inc.
- MEP Engineer: GMEP Engineers
Civil Engineer: GreyStone Engineering Group Inc. - Soils Engineer: Hillside Inspections, Inc
- Photographers: Paul Vu / Renee Parkhurst / Yuheng Huan
- Interior Architect / Designer: Arshia Architects
- Landscape Architect: Arshia Architects
- Lighting Designer: Arshia Architects
Project Address: 1254 Roberto Ln, Bel Air, California USA
Floor Area: 6,774
Site Area: 10,314.8 sf
Site Dimensions :120’x85’
Building Dimensions: 65’x49’
Landscape Area: 6,438.34 sf
Zoning: Residential Estate (RE15-1-H-HCR)
Height: 26ft (max)
Program: New Single-Family Residence.
Substructure: Exposed structural concrete retaining walls with integral pigment (graphite iron oxide)
Superstructure: Structural steel with light gauge steel framing infill and wood joist framing.
Exterior Shell: CNC milled High-Density Urethane (HDU) boards coated with mineral plaster

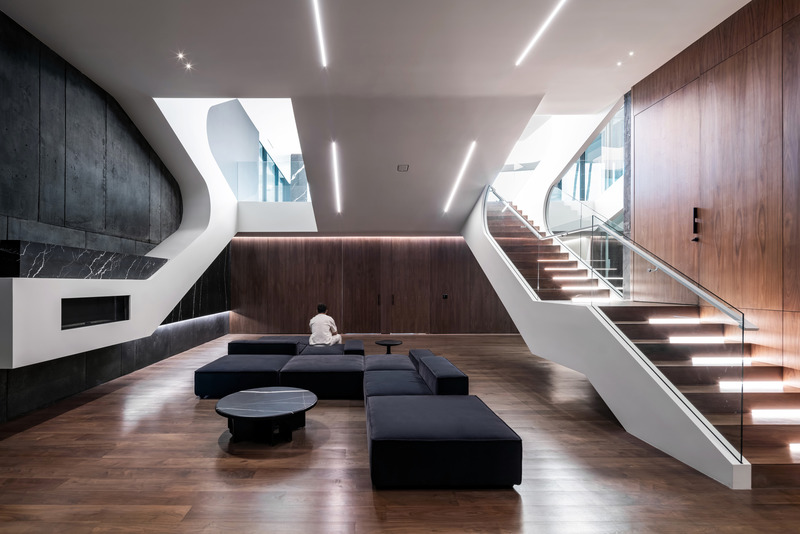

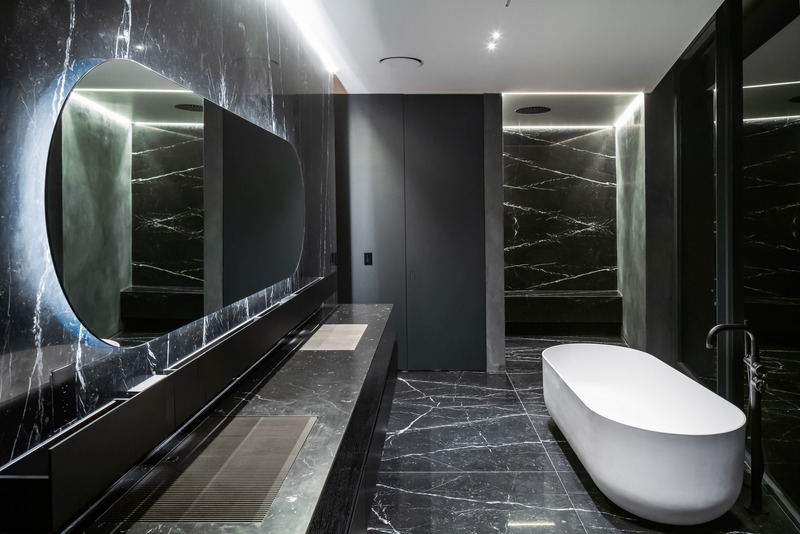

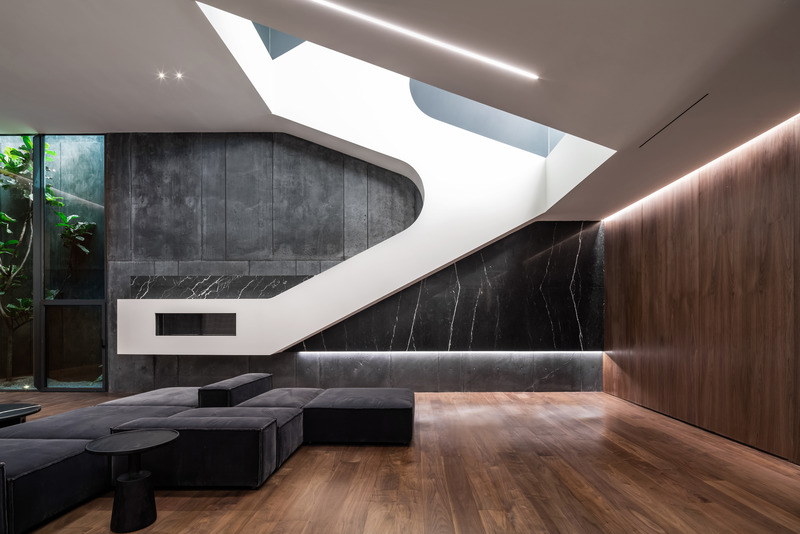

Interior Wall Surfaces: Painted drywall, walnut wood veneer, exposed pigmented concrete, marble slabs
Floor Material: Plaster, Engineered walnut wood flooring
Lighting: Diffused LED lightfield, linear LED lights, pin-hole LED lights

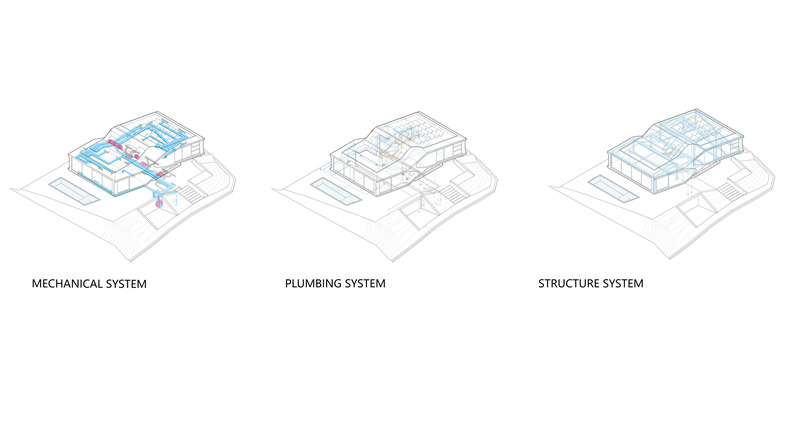

Air Conditioning: High Efficiency Zoned Variable Air Handler units with roof-integrated condenser compartment and custom manufactured micro-slot diffusers.
Plumbing: Water efficient fixtures with european durability
Equipment: Design and durability conscious appliances
Automation: Lutron Homeworks mainframe with Palladium interfaces and shading devices

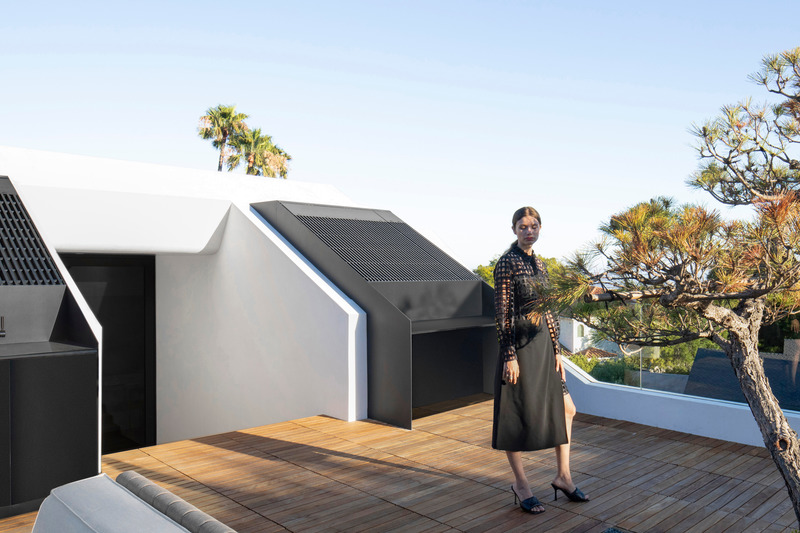

Hardscaping: Cumaru wood decking, Silver Decomposed Granite, Aggregate finish concrete, Arizona Flagstone boulders.
Waterproofing: Encapsulated foundation membrane, polymesh applied surface waterproofing over whole house adhered membrane.
Landscaping: Native, drought tolerant planting.
About Arshia Architects
Founded in 2006, Arshia Architects is a Los Angeles-based architecture and design practice that emerged from the tectonic breach of the aesthetic experience and the act of building - purposely fusing this gap with novel substance.
Arshia Architects' studio is dedicated to the exploration of space and the built environment. They are committed to new ways of thinking in space that provide unique solutions to the complex challenges and parameters that affect architecture. They aim to collaborate with disparate disciplines, entering a dialogue with the environment, believing that such partnerships create emergent qualities in architecture.
The practice has been recognized with citations and awards from the American Institute of Architects, the Los Angeles Architecture Award, the International Interior Design Association, and numerous other national and international organizations. Their body of work has been published internationally, and the studio was selected by the Museum of Contemporary Art (MOCA) as one of the participants in the first retrospective exhibition on Contemporary Architecture in Southern California – focused on the top 35 radical practices to emerge within the past twenty-five years.
