Stellar

Ahmedabad, Inde

Sanjay Puri Architects

Mumbai, Inde, 14-01-2020 -

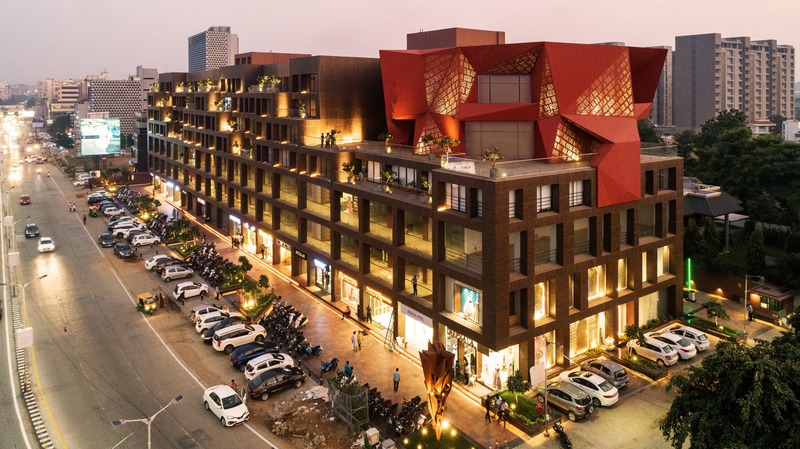

A rectilinear composition creating offices opening into landscaped terraces along an arterial city road, Stellar is a commercial building with retail spaces at the 3 lower levels and offices at the upper 4 levels. This 110-meter long building is fragmented at the upper floors with north-facing terraces and is punctuated by a large 2 level angular office space on the north-west corner.


Designed in conformation with a very specific brief, retail spaces occupy the lower levels along the extensive road frontage. Small offices constitute the upper levels with 30% of the offices opening into landscaped terraces.

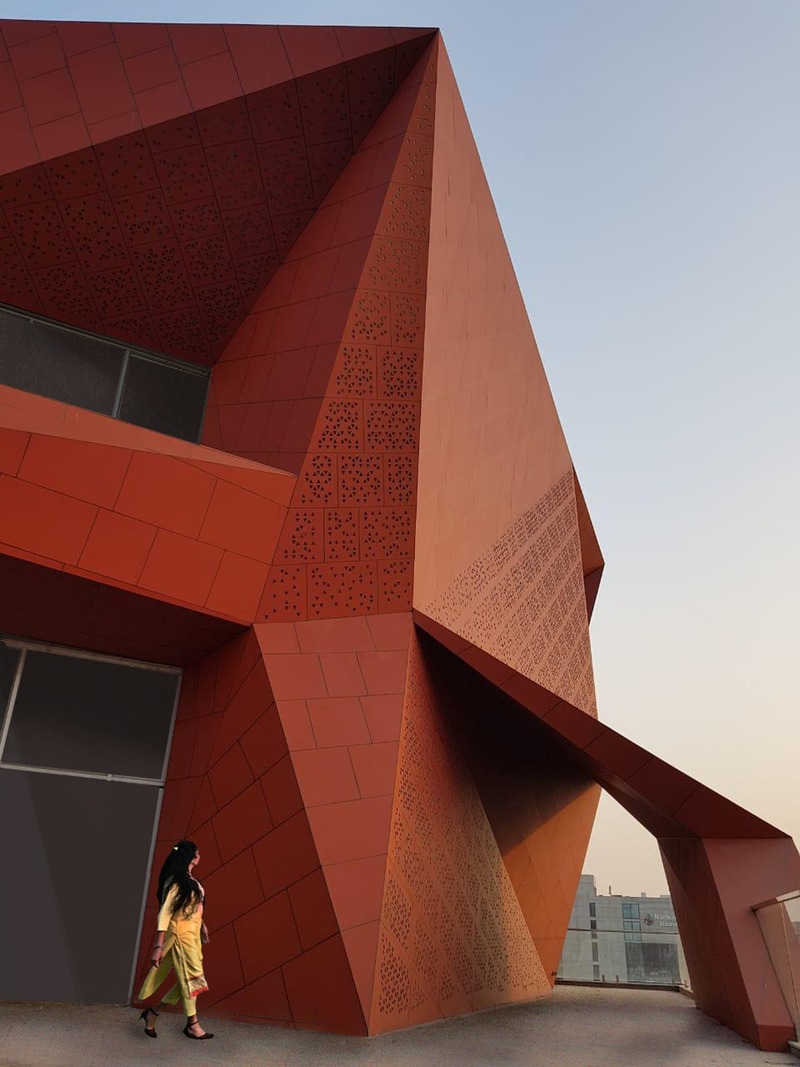

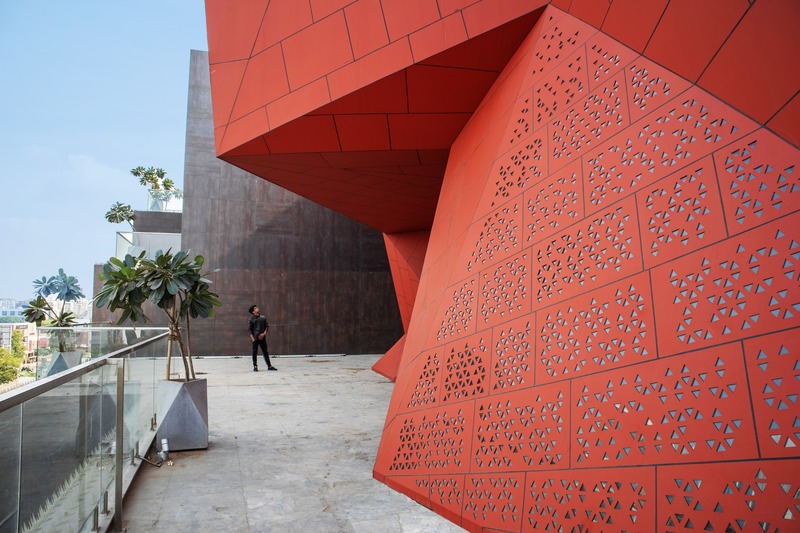

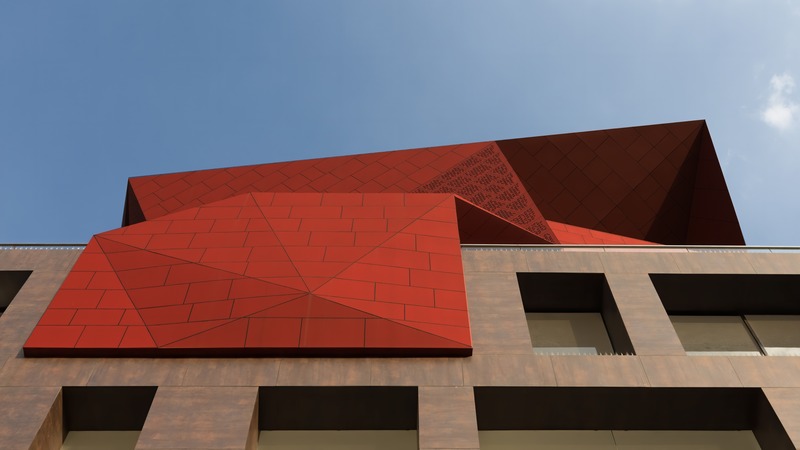

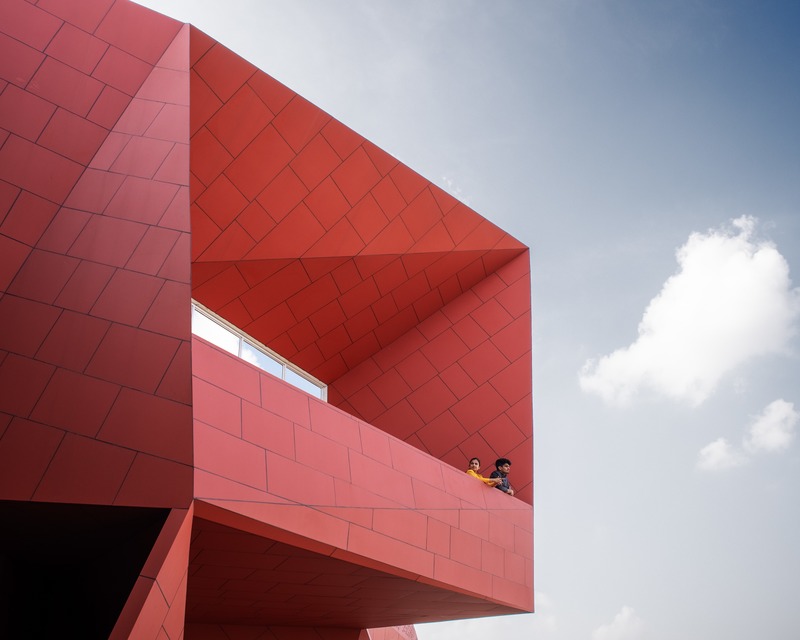

The owner of the development wanted a clearly discernible office space of 500 sq meters. Angular folded planes create this office, set back from the road junction at the north-west corner, punctuating the rectilinear composition of the rest of the building. Created with rust-red colored solid aluminium sheets this angular office volume is nestled within an open north-oriented terrace. This office space is deliberately designed to contrast with the rest of the building creating an interesting juxtaposition of color, volume & geometry in addition to creating an individual identity based upon the brief. The simple rectilinear geometry with muted color tones & the complex angular geometry awash with color contrast to create a unique composition.


Large openings towards the northern side, smaller recessed windows on the southern side, reduce heat gain in response to the high temperatures of the location in Ahmedabad city in India. Temperatures in this city are in excess of 35°C for 8 months annually. All the terraces are connected to a rainwater harvesting tank & all water is recycled and reused. Solar panels at the terrace harness the abundant solar energy available.


This office and retail space building is contextual to the site’s location, climate & the client’s brief, amalgamating them cohesively.


Technical sheet

Name of the Project: Stellar

Location: Ahmedabad, Gujarat

Client’s Name: Mr Dushyant Goswami

Suvidha Projects



Architecture Firm: Sanjay Puri Architects



Plot Area: 5717.5 SQM

Total built-up: 18580 SQM

Start year: 2015

Project completion year: 2019



Lead architect: Sanjay Puri

Design Team: Toral Doshi, Manisha Rana, Shivani Awasthi, Jay Patel, Shachi Patel, Tshering Bhutia



Consultants

Engineering:

Ducon Consultants Pvt Ltd

PT vendor: Post Tension Services India pvt. ltd.

Services: INI Infrastructure & Engineering

Interior Design: Sanjay Puri Architects

Landscape: Sanjay Puri Architects



Collaborators

Main Contractor: Spartan Builders Pvt. Ltd.

Fabricator: Real Image

Construction: RCC Structure, PT frame structure

Finishes: Neolith Cladding for main structure

Aluminum composite panel for the private office


About Sanjay Puri Architects

Sanjay Puri, alumni of Mayo College, Ajmer and St.Xaviers College, Mumbai graduated from the Academy of Architecture, Mumbai in 1988 and is the principal architect of the firm Sanjay Puri Architects.


With a young team of over 72 architects, the firm has a diverse portfolio of projects including townships, residential developments, software parks, hotels, retail malls, schools, and smaller individual projects.


- 30 -

Pour plus d’informations

  1. www.sanjaypuriarchitects.com

Contact média

Pièces jointes

Site Plan
Concept
Axonometric
Section Elevation
Detail
Images basse résolution ~ 3,4 Mo
Images haute résolution ~ 500 Mo

Termes et conditions

Pour diffusion immédiate

La mention des crédits photo est obligatoire. Merci d’inclure la source v2com lorsque possible et il est toujours apprécié de recevoir les versions PDF de vos articles.

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Front View A  - Crédit photo : Mr. Abhishek Shah
Front View A
Crédit photo : Mr. Abhishek Shah
Télécharger

Image très haute résolution : 17.97 x 13.26 @ 300dpi ~ 12 Mo

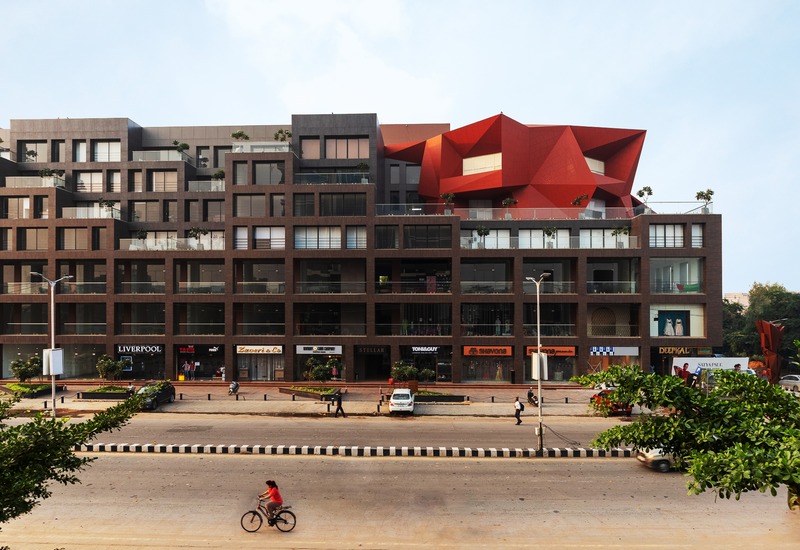

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Front View B - Crédit photo : Mr. Abhishek Shah
Front View B
Crédit photo : Mr. Abhishek Shah
Télécharger

Image très haute résolution : 26.67 x 18.33 @ 300dpi ~ 14 Mo

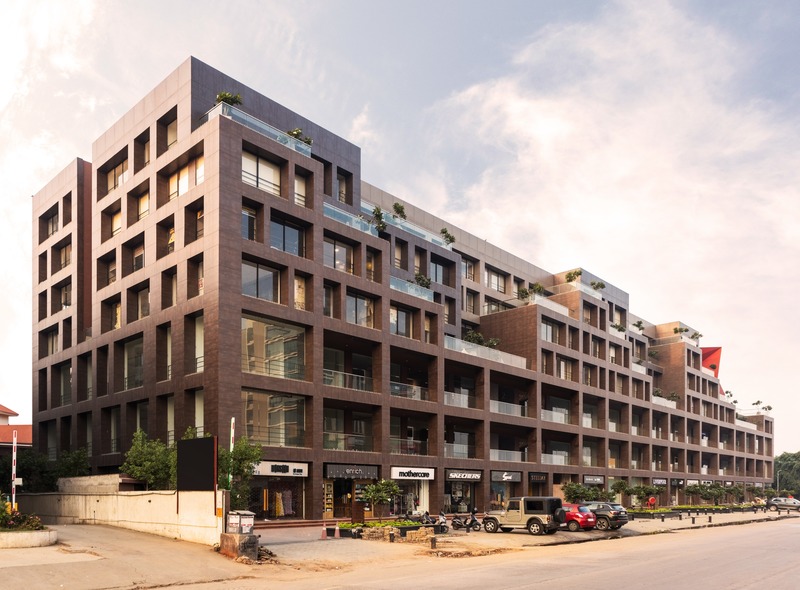

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Side View - Crédit photo : Mr. Abhishek Shah
Side View
Crédit photo : Mr. Abhishek Shah
Télécharger

Image haute résolution : 13.81 x 11.05 @ 300dpi ~ 6,7 Mo

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Side View - Crédit photo : Mr. Abhishek Shah
Side View
Crédit photo : Mr. Abhishek Shah
Télécharger

Image très haute résolution : 18.21 x 10.23 @ 300dpi ~ 16 Mo

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Retails & Offices - Crédit photo : Mr. Abhishek Shah
Retails & Offices
Crédit photo : Mr. Abhishek Shah
Télécharger

Image très haute résolution : 17.78 x 26.67 @ 300dpi ~ 10 Mo

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Stepped Terraces - Crédit photo : Mr. Abhishek Shah

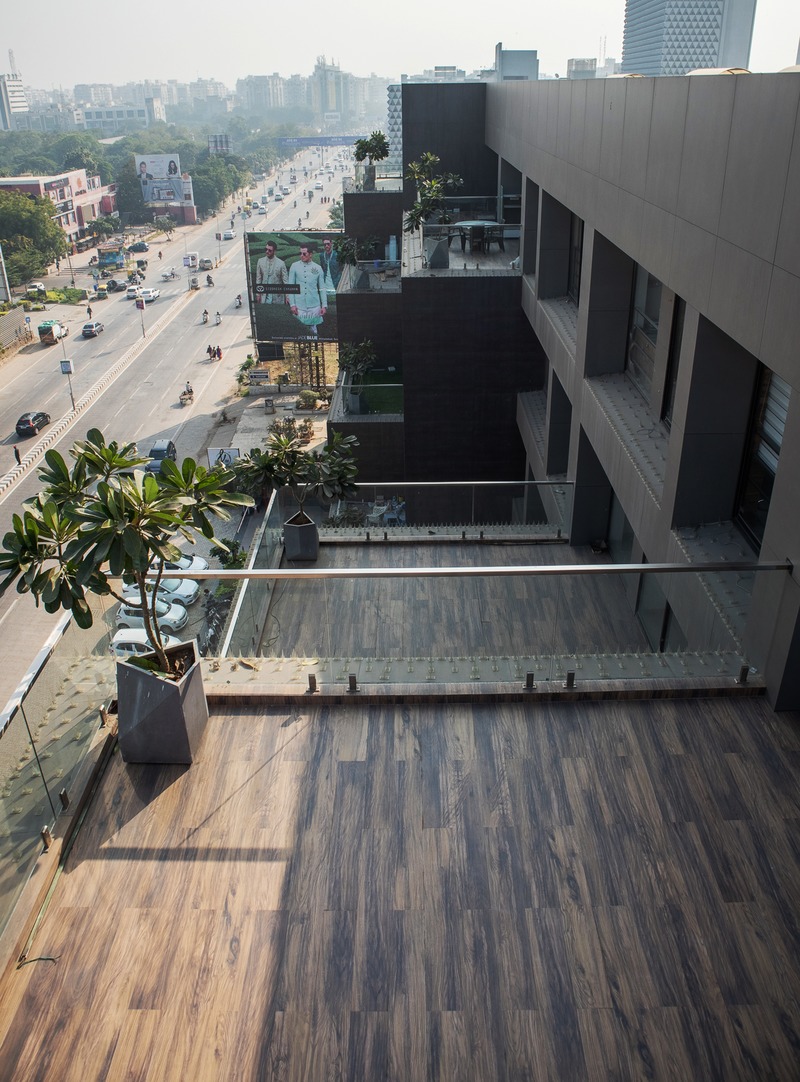

Stepped Terraces
Crédit photo : Mr. Abhishek Shah
Télécharger

Image très haute résolution : 19.72 x 26.67 @ 300dpi ~ 16 Mo

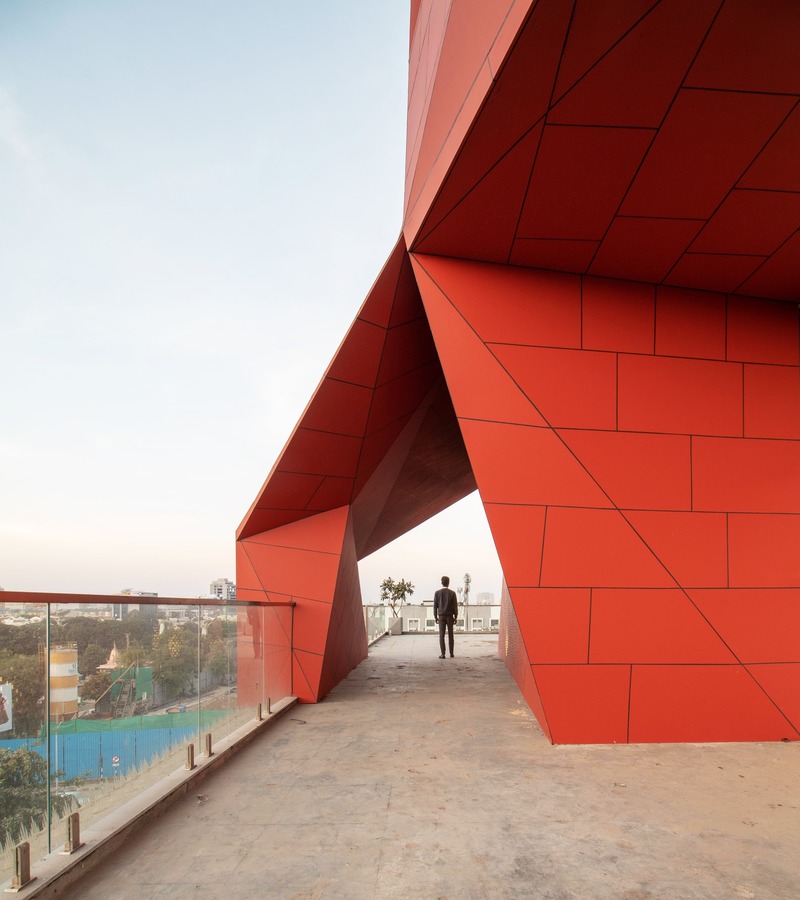

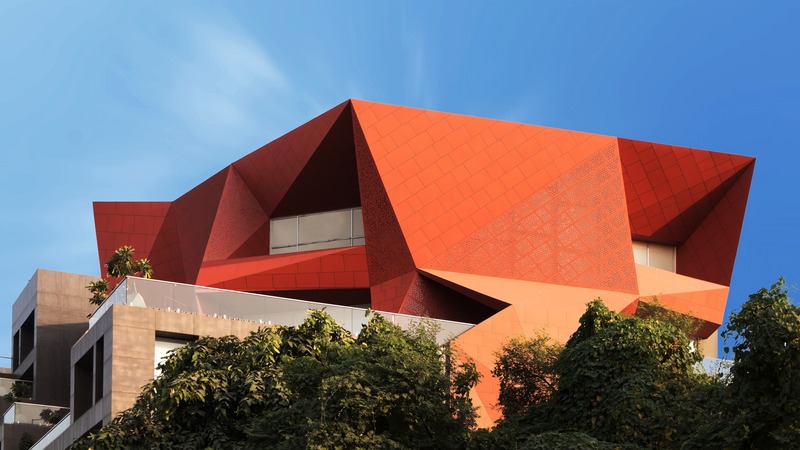

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Private Office View A - Crédit photo : Mr. Abhishek Shah
Private Office View A
Crédit photo : Mr. Abhishek Shah
Télécharger

Image très haute résolution : 20.0 x 11.25 @ 300dpi ~ 12 Mo

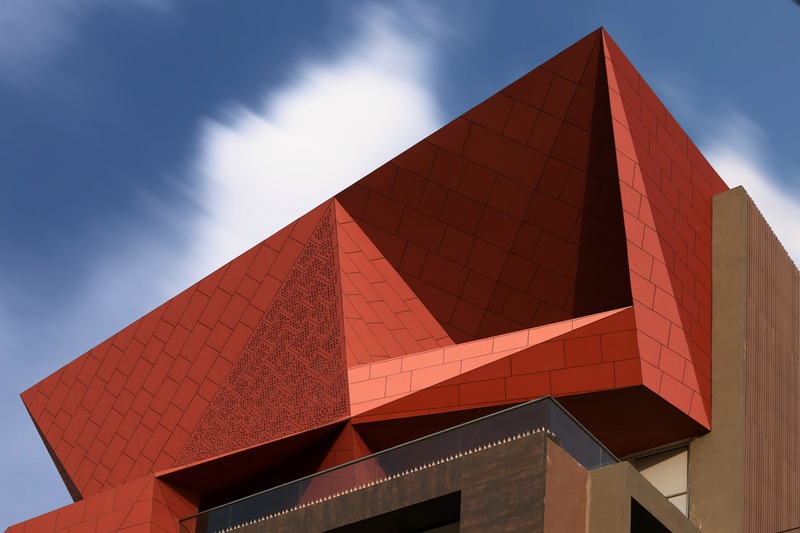

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Private Office View B - Crédit photo : Mr. Abhishek Shah
Private Office View B
Crédit photo : Mr. Abhishek Shah
Télécharger

Image très haute résolution : 20.0 x 13.33 @ 300dpi ~ 12 Mo

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Crédit photo : Mr. Abhishek Shah
Crédit photo : Mr. Abhishek Shah
Télécharger

Image très haute résolution : 20.0 x 11.25 @ 300dpi ~ 9,1 Mo

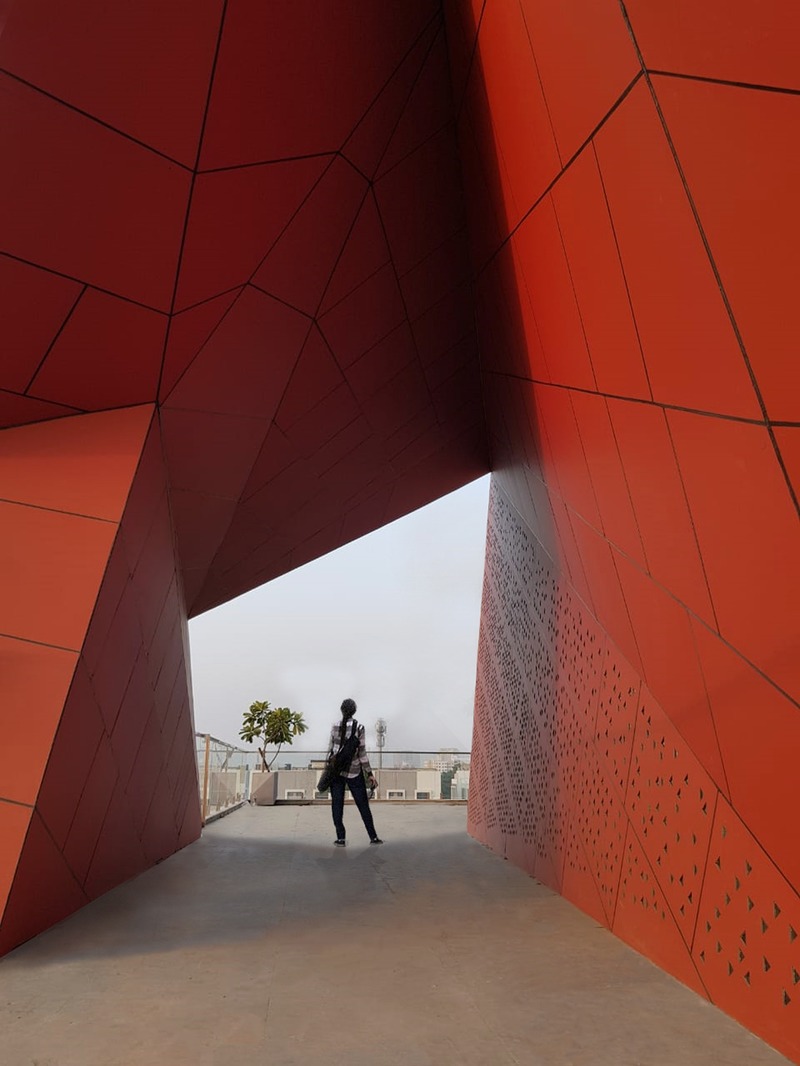

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Private Office - Crédit photo : Sanjay Puri Architects
Private Office
Crédit photo : Sanjay Puri Architects
Télécharger

Image haute résolution : 10.0 x 13.33 @ 300dpi ~ 2,8 Mo

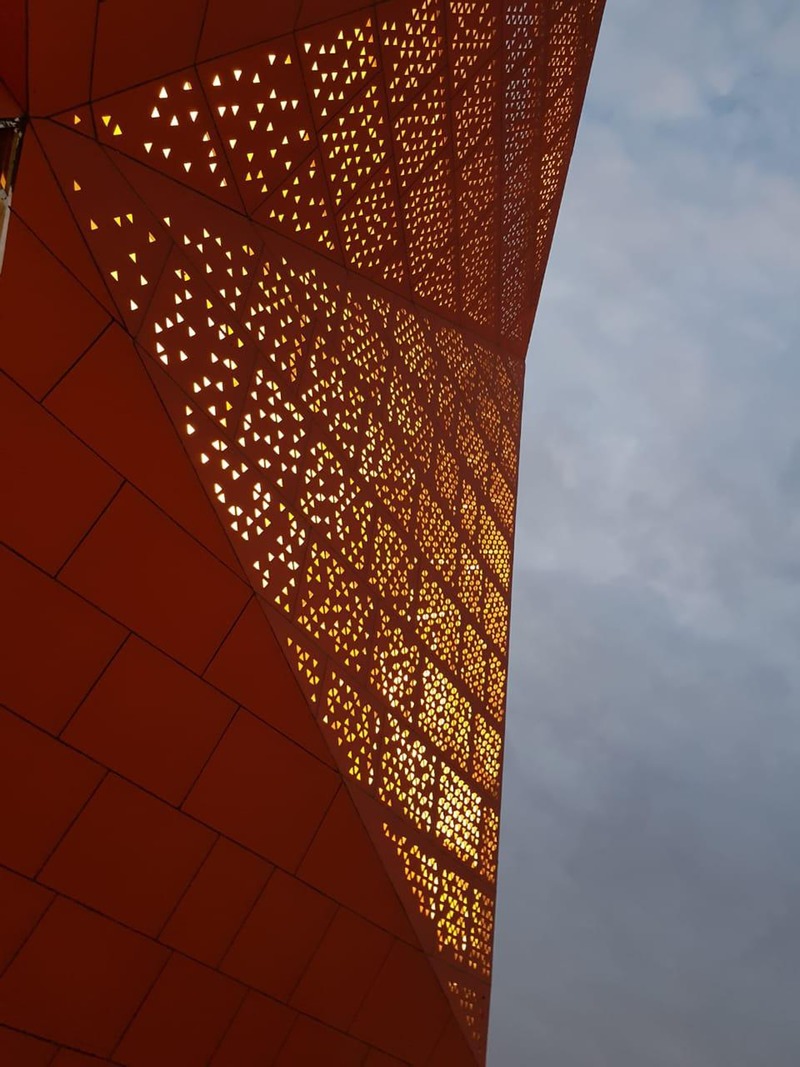

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Private Office - Crédit photo : Sanjay Puri Architects
Private Office
Crédit photo : Sanjay Puri Architects
Télécharger

Image haute résolution : 10.0 x 13.33 @ 300dpi ~ 2,8 Mo

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Private Office - Crédit photo : Mr. Abhishek Shah
Private Office
Crédit photo : Mr. Abhishek Shah
Télécharger

Image haute résolution : 16.58 x 13.26 @ 300dpi ~ 12 Mo

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Crédit photo : Mr. Abhishek Shah
Crédit photo : Mr. Abhishek Shah
Télécharger

Image haute résolution : 13.07 x 14.69 @ 300dpi ~ 5,5 Mo

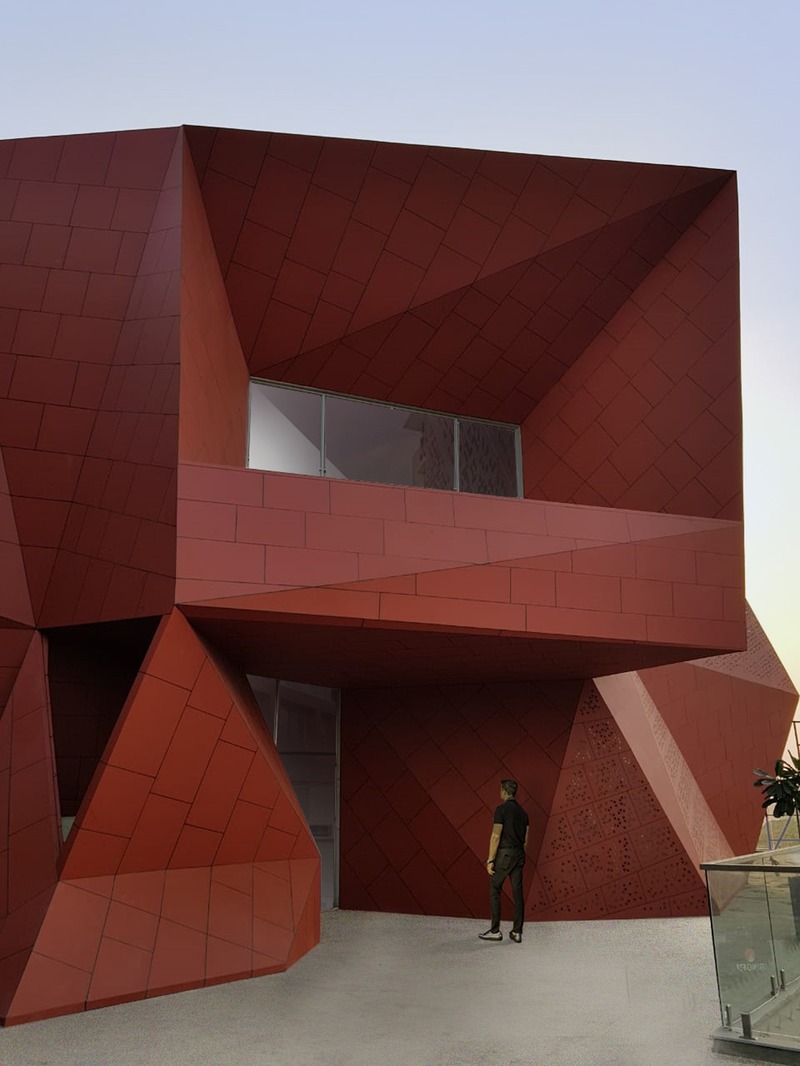

Dossier de presse | 1432-06 - Communiqué de presse | Stellar - Sanjay Puri Architects - Architecture commerciale - Crédit photo : Sanjay Puri Architects
