Shunde Yunlu Wetland Museum

Shunde, China

Studio Link-Arc

Invisible Museum

New York, United States, 2025-12-03 -

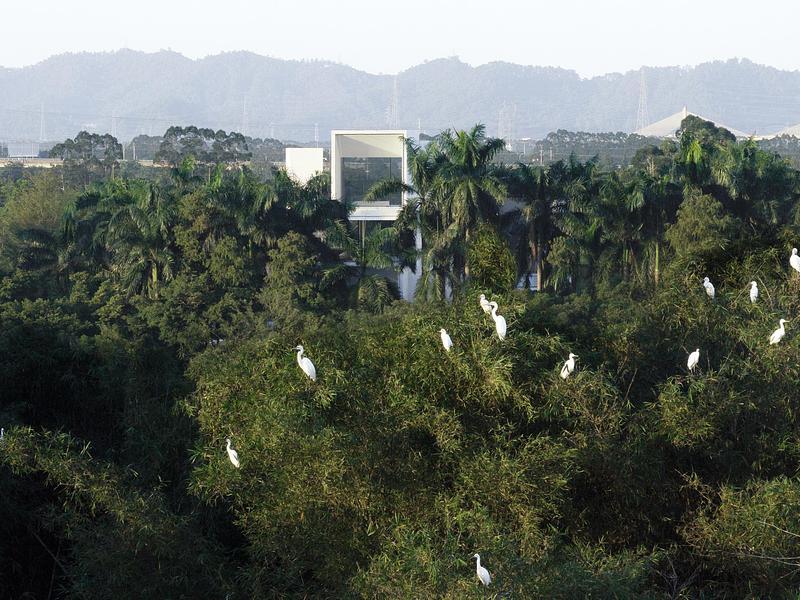

The Yunlu Wetland Museum is located in Yunlu Wetland Park in Shunde, adjacent to an ecological island inhabited by 25,000 egrets. The building combines a bird-watching tower and a wetland museum, aiming to raise visitors' awareness of the ecology of the wetland while providing a unique bird-watching experience.


The project originated from a bamboo forest planted by "Uncle Bird" Xian Quanhui 26 years ago. With the influx of a large number of egrets, a good intention prompted Uncle Bird to make this oasis an "egret paradise" in the city through decades of effort. Today, the Shunde government has expanded the protected area of Egret Paradise by 13 times, working with scientists, engineers, and designers to restore water systems, update bamboo forests, and reshape this area into Yunlu Wetland Park.


The architects chose to hide the building behind a row of existing cedar forests. The shape of the building consists of four vertically stacked concrete tubes, resembling four horizontally rotating "lenses" that capture the activities of egrets. The design aims to minimize the presence of the building and harmoniously coexist with the "indigenous creatures" in this area with a modest attitude. Looking at the museum from Egret Island, the building "disappears" into a lush subtropical forest.


Each tube of the museum is rotated to an optimal viewing direction according to site conditions, forming four staggered "framing frames" in the internal space. Floors 1 to 4 look towards the tree roots, trunks, crowns, and treetops. People can observe the swaying of tree shadows and the fluttering of birds on Egret Island from different heights inside the building. In this way, the traditional human-oriented architectural perspective is deconstructed into a nature-oriented scattered perspective.


The four superimposed tubes of the museum are divided into a vertical triangular atrium by a Boolean difference, which connects the volumes of the four floors together. The atrium is a common "viewpoint" for different perspectives inside the building. Standing here, one can simultaneously look into nature through the tubes in different directions. The viewfinder window at the end of the tube is like several carefully selected landscape paintings hanging in the space.


The building adopts a box-type concrete structure system. The side walls, top plate, and bottom plate of each tube work together to provide overall load-bearing support. Softened by deep beams, sunlight filters through the upper skylights and penetrates into the interior of the building. Being in the building, people can physically perceive the flow of seasons and the change of nature.


In order to not damage the wetland environment, after surveying the existing 560 trees, the architect carefully determined the location of the building, reduced its footprint, and rotated the volume of each floor. This also ensures that buildings can capture good bird watching views while reducing the logging of native trees.


The exterior facade of the building is made of cast-in-place pine molded concrete. The fine grain of the pine wood gives the facade a natural texture that echoes the surrounding dense forest. The roof of the building is covered by lotus ponds, and the ecological water features weaken the presence of the building on the fifth elevation.

Technical sheet

Project Name: Shunde Yunlu Wetland Museum

Project Location: Guangdong, China

Project Type: Cultural Architecture-Museum, Gallery

Area: 1,800 sqm

Client: CR Land, Shunde People’s Government of Foshan

Design Stage: 09/2023-04/2024

Construction Stage/Completion: 09/2024

Chief Architect: Yichen Lu

Project Manager: Shiyu Guo

Project Team: Rui Zhou, Jiaqi Zhang, Zhenwei Zhong, Zida Liu, Jingbing Cheng, Luis Ausin, Lingyun Yang, Feng Qi, Jiarui Xu, Xinning Hua, Sarah Kenney, Zishi Li, Isabella Chong

Design Scope: Architectural Design, Interior and Landscape Conceptual Design

Architect & Engineer of Record: Shenzhen A+E Design Co., Ltd.

Structural Consultant: Shenzhen WS Engineering Design Consultant Ltd. / Shenzhen A+E Design Co., Ltd.

Curtain Wall Consultant: Zheng Xiang Consultant

Landscape Designer: CHANGE

Interior Consultant: Yu Studio

Lighting Consultant: Gradient Lighting Design

Building Structure: box structure, steel structure

Main Building Material: pine moulded fair-faced concrete, glass curtain wall, stainless steel plate

Main Interior Material: woodgrain stone, texture paint, wood veneer

Supplier: Beijing Yihuida Architectural Concrete Engineering Co.,Ltd..


http://link-arc.com/

http://link-arc.com/project/yunlu-wetland-gallery/

About Studio Link-Arc

Based in New York City, Studio Link-Arc, LLC is an international team of architects and designers. The firm's name, Link-Arc, refers to the practice’s collaborative nature, as well as its mission, which is to work across disciplines to create strategy and design in the fields of urban planning, architecture, spatial art, and landscape. Link-Arc accomplishes that by linking knowledge, resources, and intelligence derived from multiple perspectives and diverse backgrounds.

Link-Arc's body of work includes innovative projects at all scales. The firm sees the relationship between architecture and context as an opportunity to create a new context, new nature, and a new understanding of the world. Through research, they uncover the essential truths unique to each project, and then use those truths to create concepts and shape form. Link-Arc endeavors to create refined works of architecture, creating spaces that promote contemplation and imagination, providing quiet satisfaction through the simple act of occupation.

Link-Arc approaches each project with an open mind. The firm works to understand the constraints unique to each project and then integrates them into the process, enabling the work to develop in an informed manner. Link-Arc's work addresses societal and cultural issues, which in turn promotes design integrity and the understanding that context extends beyond the physical.

Link-Arc's intellectual approach is based on openness to challenge, gaining strength from diverse cultural backgrounds and contexts, and viewing architecture as a discipline that transcends the pragmatic act of building. The firm believes that architecture can be an inclusive discipline that rises to the challenges of the current era.

- 30 -

For more information

Media contact

Terms and conditions

For immediate release

All photos must be published with proper credit. Please reference v2com as the source whenever possible. We always appreciate receiving PDF copies of your articles.

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - Aerial view of the wetland museum  - Photo credit: Tian Fangfang
Aerial view of the wetland museum
Photo credit: Tian Fangfang
Download

Medium-resolution image : 9.6 x 9.6 @ 300dpi ~ 5.3 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of the museum from the wetland park - Photo credit: Arch-Exist
View of the museum from the wetland park
Photo credit: Arch-Exist
Download

High-resolution image : 9.6 x 14.4 @ 300dpi ~ 8.1 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of the museum from a distance - Photo credit: Arch-Exist
View of the museum from a distance
Photo credit: Arch-Exist
Download

Medium-resolution image : 9.6 x 8.52 @ 300dpi ~ 5.9 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of the wetland museum from the egret island  - Photo credit: Arch-Exist
View of the wetland museum from the egret island
Photo credit: Arch-Exist
Download

Medium-resolution image : 9.6 x 7.2 @ 300dpi ~ 5.1 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of the wetland museum from north - Photo credit: Tian Fangfang
View of the wetland museum from north
Photo credit: Tian Fangfang
Download

High-resolution image : 9.6 x 12.0 @ 300dpi ~ 5.7 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture -  View of the museum from the wetland park  - Photo credit: Arch-Exist
View of the museum from the wetland park
Photo credit: Arch-Exist
Download

High-resolution image : 9.6 x 11.8 @ 300dpi ~ 7 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture -  View of the four viewfinders - Photo credit: Tian Fangfang
View of the four viewfinders
Photo credit: Tian Fangfang
Download

Medium-resolution image : 9.6 x 7.19 @ 300dpi ~ 4.1 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - A corner of the museum through the lush forest - Photo credit: Arch-Exist
A corner of the museum through the lush forest
Photo credit: Arch-Exist
Download

Medium-resolution image : 9.6 x 6.4 @ 300dpi ~ 5.1 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of the wetland museum from the sequoia forest - Photo credit: Tian Fangfang
View of the wetland museum from the sequoia forest
Photo credit: Tian Fangfang
Download

High-resolution image : 9.6 x 12.8 @ 300dpi ~ 6.8 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - West elevation of the wetland museum - Photo credit: Tian Fangfang
West elevation of the wetland museum
Photo credit: Tian Fangfang
Download

Medium-resolution image : 9.6 x 7.2 @ 300dpi ~ 4.5 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of the wetland museum under the palm tree - Photo credit: Arch-Exist
View of the wetland museum under the palm tree
Photo credit: Arch-Exist
Download

Medium-resolution image : 9.6 x 8.88 @ 300dpi ~ 5 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of the viewfinders from the second-floor terrace - Photo credit: Tian Fangfang
View of the viewfinders from the second-floor terrace
Photo credit: Tian Fangfang
Download

High-resolution image : 9.6 x 12.8 @ 300dpi ~ 4.9 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - Entrance of the museum - Photo credit: Tian Fangfang
Entrance of the museum
Photo credit: Tian Fangfang
Download

Medium-resolution image : 9.6 x 6.4 @ 300dpi ~ 5.3 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - Wetland gallery  - Photo credit: Tian Fangfang<br style="">
Wetland gallery
Photo credit: Tian Fangfang
Download

Medium-resolution image : 9.6 x 7.2 @ 300dpi ~ 2.6 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - North-side stairs  - Photo credit: Tian Fangfang
North-side stairs
Photo credit: Tian Fangfang
Download

Medium-resolution image : 9.6 x 7.2 @ 300dpi ~ 1.6 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of atrium from the second floor - Photo credit: Tian Fangfang
View of atrium from the second floor
Photo credit: Tian Fangfang
Download

High-resolution image : 9.6 x 12.8 @ 300dpi ~ 4.6 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of atrium from the third floor - Photo credit: Arch-Exist
View of atrium from the third floor
Photo credit: Arch-Exist
Download

High-resolution image : 9.6 x 12.28 @ 300dpi ~ 4.1 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - View of the viewfinders from sequoia forest - Photo credit: Tian Fangfang
View of the viewfinders from sequoia forest
Photo credit: Tian Fangfang
Download

High-resolution image : 10.0 x 13.33 @ 300dpi ~ 3.6 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture -  Fifth elevation  - Photo credit: Tian Fangfang
Fifth elevation
Photo credit: Tian Fangfang
Download

Medium-resolution image : 9.6 x 7.2 @ 300dpi ~ 4.6 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - Sketch - Photo credit: Studio Link-Arc
Sketch
Photo credit: Studio Link-Arc
Download

Very High-resolution image : 18.36 x 22.47 @ 300dpi ~ 9.4 MB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - Site model - Photo credit: Studio Link-Arc

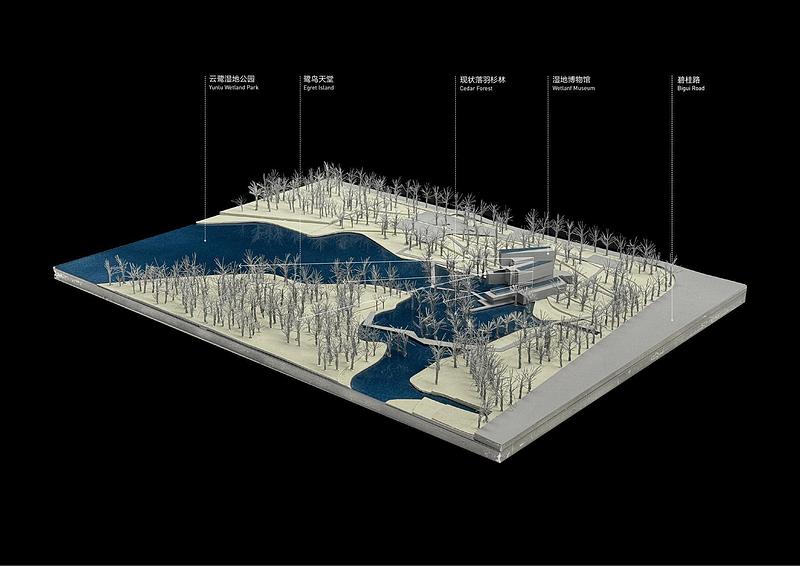

Site model
Photo credit: Studio Link-Arc
Download

Medium-resolution image : 6.67 x 4.72 @ 300dpi ~ 850 KB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - Model - Photo credit: Studio Link-Arc

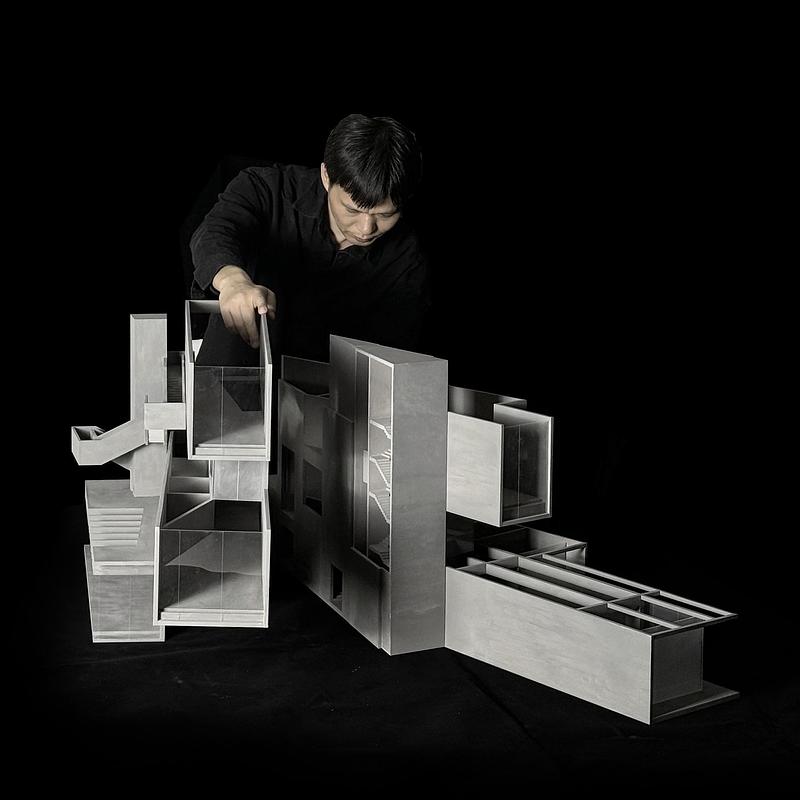

Model
Photo credit: Studio Link-Arc
Download

Medium-resolution image : 6.67 x 6.67 @ 300dpi ~ 730 KB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - Four rotating tubes - Photo credit: Studio Link-Arc

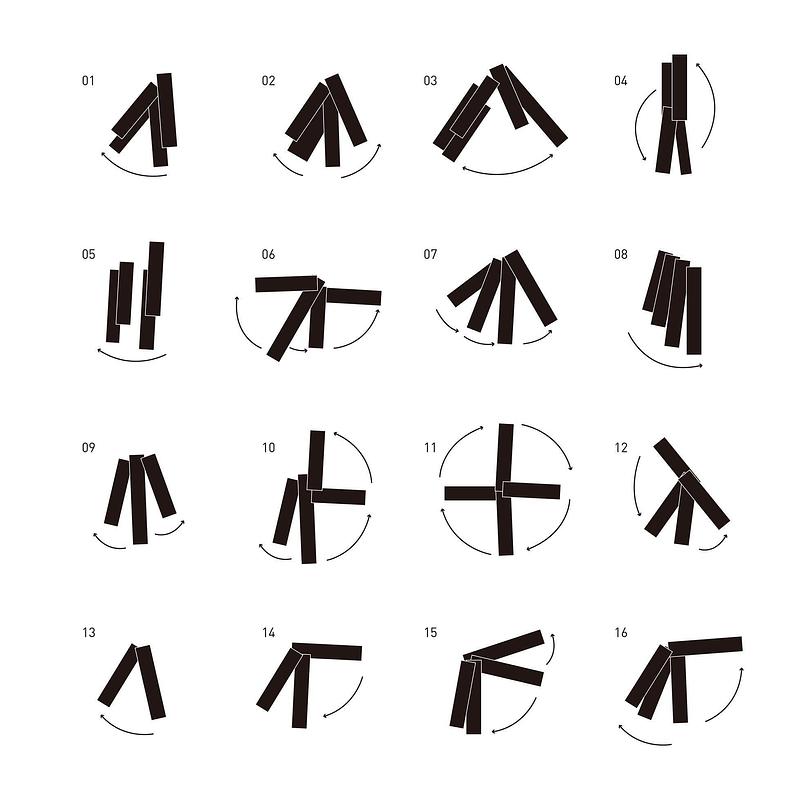

Four rotating tubes
Photo credit: Studio Link-Arc
Download

Medium-resolution image : 6.53 x 6.53 @ 300dpi ~ 340 KB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - Circulation axon diagram - Photo credit: Studio Link-Arc

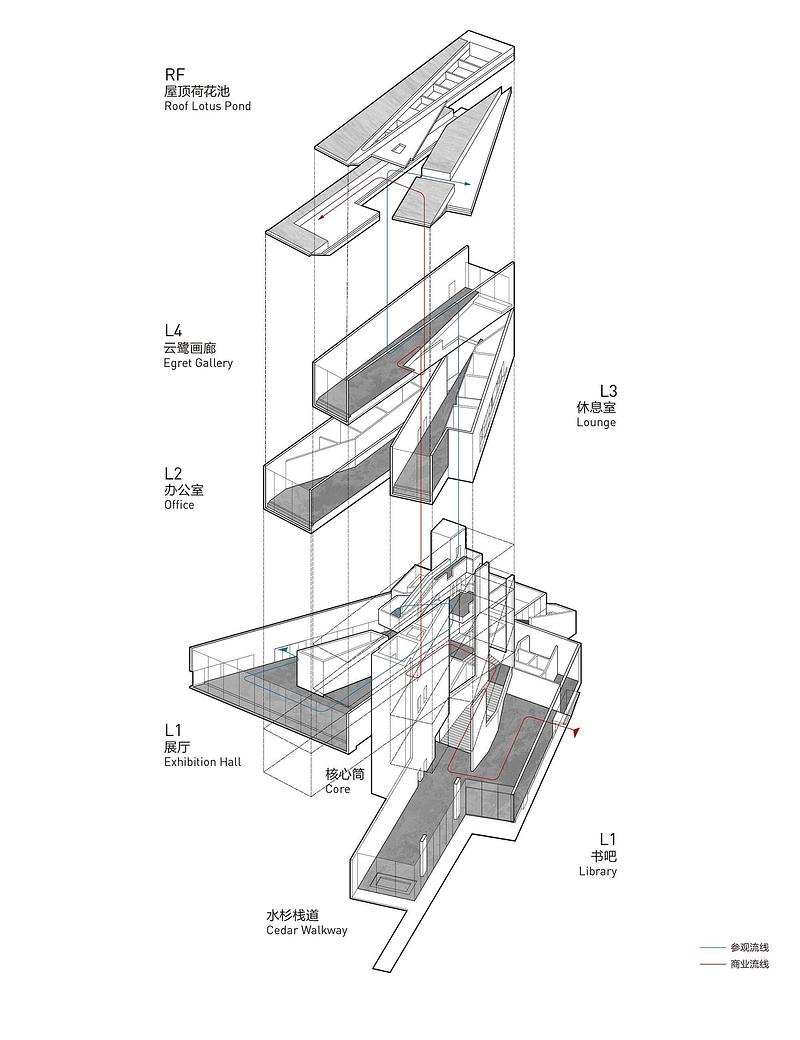

Circulation axon diagram
Photo credit: Studio Link-Arc
Download

Medium-resolution image : 6.67 x 8.66 @ 300dpi ~ 750 KB

Press kit | 2606-06 - Press release | Shunde Yunlu Wetland Museum - Studio Link-Arc - Institutional Architecture - Section and sight analysis - Photo credit: Studio Link-Arc

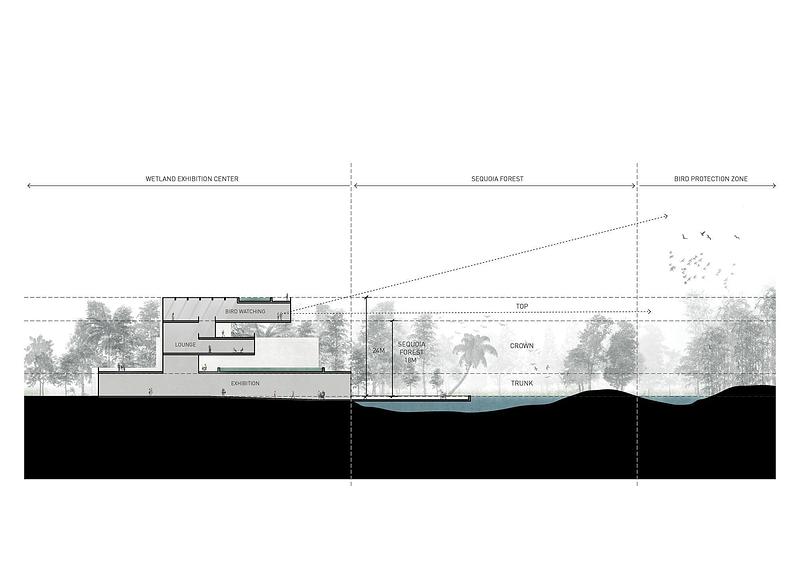

Section and sight analysis
